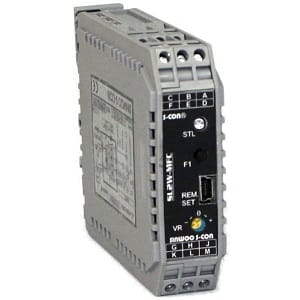

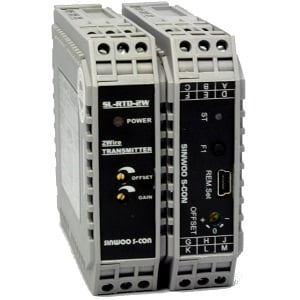

SL2W (Loop powered) TWO-WIRE CONVERTER

· Function(기능)
LOOP-POWERED TRANSMITTER
· Input(입력)
DC/RTD/TC/POTENTIOMETER
· Output(출력)
LOOP POWERED CURRENT
· Other Spec.(기타)
TWO-WIRE CONVERTER
제품 상세정보

No power supply required (Loop powered output)
GENERAL SPECIFICATIONS
– Housing Material : Plastic ABS(Resin) Gray
– Isolation : Input to Output
– Adjustable : Output Offset
– Burnout Protection : Upscale standard (Default Set)
– Output protected by transient voltage suppressor.
– Max. measuring Range:
– DC Voltage 0.000 ~ 10.000 V (Max. 11.0 V)
DC Current 4.000 ~ 20.000 mA (Max. 22.0 mA)
– RTD Sensor type DIN IEC 60751/ JIS C 1606    (sensor current approx. 0.3 mA)
– T/C Sensor type DIN EN 60584   T/C type T, E, J, K, N, R, S, B
– Resistance and Potentiometer 0 ~ 4000 Ω / 4 ~ 100㏀
– Adjustment : Zero & Span(Separation) Free.
– Adjustment : Offest Adj range 0~1mA (F1+3Sec. => ±0.5 mA)

Analog output for measuring range
– Configurable : 4~20mA or 20~4 mA, 2 Wire design
– Lower Limit : 3.9 mA
– Higher Limit : 21 mA
– Load resistance(Ra) : Ra < (Supply Voltage(Vi) – 14V) / 0.02A

INSTALLATION
– Power Supply : DC 14~30V (24V
– Mounting : Rail Mounting IEC 60715
– Dimension : 22.5(W) X 75(H) X 107(D) (Unit : mm)
– Weight : about 100g

PERFORMANCE
– Accuracy : ±0.1% less (F.S) 23 ℃ IEC 60770
– Ambient and storage Temperature : -20 ~ +70 ℃
– Operating Humidity : 90% RH max. (Non-condensing) IEC 60068-2-30
– Vibration : 0 ~ 2000 Hz 5g IEC 60068-2-6
– Temperature Coefficient : 0.0045% /℃ (F.Test: -10~60 ℃ 0.009 ℃/℃)
– Measured value update : approx. 3 / Sec. Normal
– Isolation Voltage(Input versus Output) : AC1500 V / 60 sec. t) IEC 60664-1

Input configurable :type of sensor and measuring range

DC( mV / V / mA)

– DC Voltage 0.000 ~ 10.000 V (Max. 11.0 V)
– DC Current 4.000 ~ 20.000 mA (Max. 22.0 mA)

RTD

– Pt100 DIN IEC 60751 max. measuring range -200.0 ~ 850.0 ℃ (sensor current approx. 0.3 mA)
Pt 10,50,500,1000 etc.
– JPt100 JIS C 1606 max. measuring range -200.0 ~ 500.0 ℃ (sensor current approx. 0.3 mA)
– Ni 100 DIN 43760 max. measuring range -50.0 ~ 250.0 ℃ (sensor current approx. 0.3 mA)
– lead wirre connection configurable : 2 wire, 3 wire, 4 wire

Thermocouples ( max. measuring range)
– type T (-270.0 ~ +400.0 ℃) DIN EN 60584
– type E (-270.0 ~ +1000.0 ℃) DIN EN 60584
– type J (-210.0 ~ +1200.0 ℃) DIN EN 60584
– type K (-270.0 ~ +1372.0 ℃) DIN EN 60584
– type N (-270.0 ~ +1300.0 ℃) DIN EN 60584
– type R (- 50.0 ~ +1768.0 ℃) DIN EN 60584
– type S (- 50.0 ~ +1768.0 ℃) DIN EN 60584
– type B (250.0 ~ +1820.0 ℃) DIN EN 60584

Resistor & Potentiometer ( max. measuring range)

– Resistance and Potentiometer 0 ~ 4000 Ω / 4 ~ 100 ㏀

Power supply

– Power supply : (14 ~ 30 Vdc) Protection voltage 36V~

Output for measuring range
– Configurable : 4 ~ 20 mA or 20 ~ 4 mA (wire or HS setter design)
– Lower limit : 3.9 mA
– Higher limit : 21 mA
– Load Resistance(Ω) = ((supply voltage(V) – 14(V)) / 0.02 A)

MODEL & SUFFIX CODE    SL2W-□□□

Input Sensor

□1 : DC-1CH □2 : DC-2CH
□3 : RTD 2-lead
□4 : RTD 3-lead
□5 : RTD 4-lead
□6 : TC
□7 : Potentiometer 2-lead
□8 : Potentiometer 3-lead
□0 : Etc.

Input Type

□1 : DIN Pt10 □2 : DIN Pt50 □3 : DIN Pt100 □4 : DIN Pt1000
□5 : JIS Pt100
□6 : Ni100

□T: type T □E : type E □J : type J □K : type K
□N : type N □R : type R □S : type S □B : type B

□0 : NONE

Input Measuring range

□1 : 0~1.0 V □2: 1~5V □2: 0~10V □3: 0~20mA □4: 4~20mA

□A : 0~100℃ □B : 0~200℃ □C : 0~300℃ □D : 0~400℃ □E : 0~500℃
□F : 0~600℃ □G : 0~700℃ □H : 0~800℃ □I : 0~900℃ □J : 0~1000℃

□1 : 0~100Ω □2 : 0~500Ω □3 : 0~ 1㏀ □4 : 0~4㏀

□0 : Other range.

Analog output for measuring range (Default Setup)

□ 4~20 mA with Power supply 24Vdc
