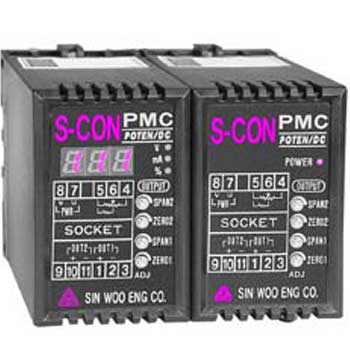

ORDERING INFORMATION
Specify code number and variables.
-Code no.: P/D-Model/Input/Output1/Ouput2-Power
(Ex : PMC-4A8N-X)
-Special Output Range (Ex.0~20mA)
GENERAL SPECIFICATIONS
-Housing Material : Plastic ABS(Polycarbonate) Black
-Isolation : Input to Output to Power
-Adjustment : Zero & Span(Separation) ±30%of F.S
-Display : 4 digits
INSTALLATION
-Power Supply : AC 100~120V or 200~230V 50/60Hz (about 3VA),DC 18~30V (about 3Watts)
-Operating Temperature : -5 ~ +55 ℃
-Operating Humidity : 90% RH max.(Non-condensing)
-Mounting : Wall or Rail mounting (Plug-in Type)
-Dimension : 52(W)×77(H)×112(D) (Unit:mm)
-Weight : about 400g
PERFORMANCE
-Accuracy : ±0.2%of Full Scale
-Temperature Coefficient : ±0.015%/℃
-Response Time : 0.5 Sec or less(0~90%),Normal
-Input Range : 100Ω ~ 100KΩ(Fee : 3-Wire only)
-Insulation Resistance : 100MΩ or More with 500V DC between Input/Output/Power
-Dielectric Strength : 1500V AC 0.5mA/Min (Input to Output to Power)
-Display Range : -1999 to 9999 (Available Decimal Point)
MODEL & SUFFIX CODE
Model Type Selection
2 : 1 Output with Display
4 : 1 Output without Display
7 : 2 Outputs with Display
9 : 2 Outputs without Display
Input Type & Range Selection
A : 100 Ω ~ 100 KΩ
R : Other Special Spec.
Output Type & Range Selection (Available for Output 1 & Output 2)
1 : DC 0~10mV (Load Resistance : 10 KΩ or more)
2 : DC 0~100mV (Load Resistance : 100 KΩ or more)
3 : DC 0~5V (Load Resistance : 5 KΩ or more)
4 : DC 0~10V (Load Resistance : 10 KΩ or more)
5 : DC 1~5V (Load Resistance : 5 KΩ or more)
6 : DC 0~1mA (Load Resistance : 0~15 KΩ)
7 : DC 0~20mA (Load Resistance : 0~750 Ω)
8 : DC 4~20mA (Load Resistance : 0~750 Ω)
R : Other Special Spec.
N : Not Used
Power Supply
W : AC 200~230V for 50/60 Hz
X : AC 100~120V for 50/60 Hz
Y : DC 18~30V
Z : Other Special Spec.
